Connection fittings

Connection fittings

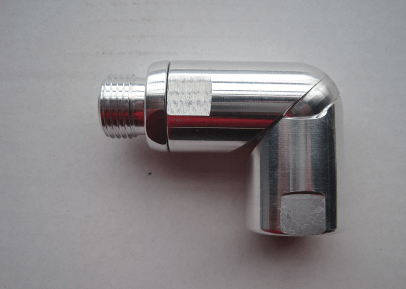

Swivel joints for all pneumatic tools

  • variable swivel
  • relief of the wrist
  • easy and flexible working
  • no kinking of the hose

Available connections:

3/8" inside x 3/8" outside

1/2" inside x 1/2" outside

3/4" inside x 3/4" outside

Hose connection nipple with strainer

Outside a Outside b Cone Passage mm Item number
R ¾ " Rd 32 x 1/8 " 01:03 16 5100896
R 1 " Rd 32 x 1/8 " 01:03 19 5103456
R ¾ " R ¾ " 01:04 15 5100895
R ¾ " R ¾ " 01:04 15 005100895S*
R 1 " R 1 " 01:2,5 17 5103457
R ½ " Rd 32 x 1/8 " 01:03 13 5105235

* Stahl

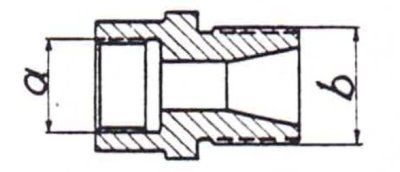

Transition pieces

Outside a Outside b Cone Passage mm Item number
R ¾ " Rd 32 x 1/8 " 01:03 16 5106300
R1" Rd 38 x 1/8 " 01:03 20 5106301
R ½ " Rd 32 x 1/8 " 01:04 13 5106299
R ¾ " Rd 38 x 1/8 " 01:03 16 5100893

Hose nozzles

Cone For clear hose width For union nut Item number
01:03 19 Rd 32 x 1/8 " 5100322
01:03 25 Rd 38 x 1/8 " 5103671
01:04 15 R ¾ " 5103030
01:04 19 R ¾ " 5102568
01:03 15 Rd 32 x 1/8 " 5100323

Union nuts

Thread Item number
Rd 32 x 1/8 " 5100325
Rd 38 x 1/8 " 5103672
R ¾ " 5102561

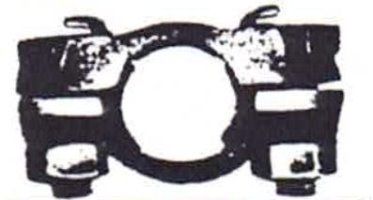

Hose clamps with and without safety claws

For clear hose width Item number
15 005103565FS*
19 005103565S*
25 5106135
25 005103585S*

Hose clamps

For clear hose width Item number
15 5110872
19 5110870

Hose couplings with safety collar

For clear hose width Item number
15 5103468
19 005103469S
25 005104069S

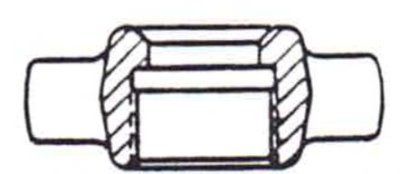

Threaded couplings

Internal thread Item number
R ¾ " 5103474
R 1 " 5103475
Rd 32 x 1/8 " 005105253N

Threaded couplings

External thread Item number
R ½ " 5103473
R ¾ " 5103471
R 1 " 5103472

Ball valve

Various versions on request!
